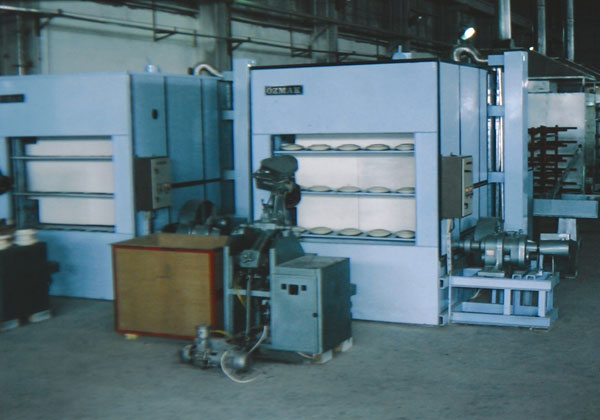

The shelf drier (plate drier) is an intermittent motion, direct blow drier intended for all flat ware from plates to bowls which are formed with convex or concave dyes. It is aimed to dry the articles rolled onto a plaster mould, to leather hardness state which is sufficient to separate them from the mould. The main heat source is combustion of natural gas or of LPG and auxiliary heat source is electricity. Loading and unloading is manual.

TECHNICAL SPECIFICATIONS

TYPE	OZTK 300	OZTK 600
Capacity (pcs/h)	300	600
Number of mould (pcs)	210	350
Drying Capacity (kcal / h)	75000	150000
Drying Air Temperature (°C)	18	18
Motor Power (kW)	2,2	3
Width (mm)	2800	2800
Length (mm)	3600	3600
Height (mm)	5000	9000
Weight (kg)	4500	8100
