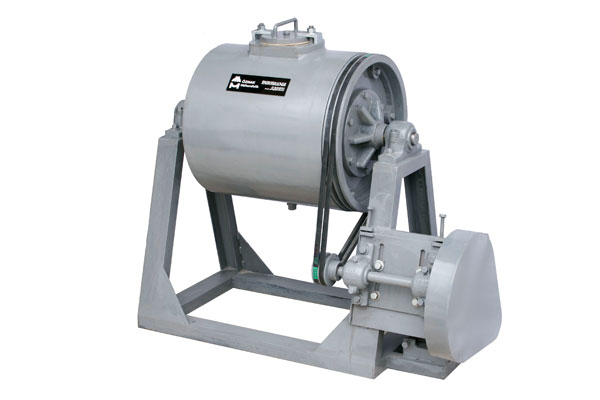

BALL MILLS

In the ceramic industry, most of the raw materials are used after being ground finely. This process is generally performed wet in ball mills. The interior walls of the ball mills manufactured for this purpose are lined with rubber or silex slabs. As grinding medium, flint balls are used.

TECHNICAL SPECIFICATIONS

Order Code	Volume (lt)	Diameter (mm)	Length (mm)	Capacity (kg)	Motor Power (kW)	Rotation Speed (d/d)
TBM 00035	35	500	440	20	0.75	60
TBM 00085	85	600	600	40	0.75	50
TBM 00185	185	800	700	100	1.5	35
TBM 00330	330	900	900	150	3	35
TBM 00530	530	1100	900	250	3	30
TBM 01300	1300	1400	1460	550	3.75	23
TBM 02000	2000	1600	1700	800	5.5	21
TBM 02700	2700	1700	1900	1200	7.5	20
TBM 04000	4000	1900	2150	2000	1	18
TBM 05700	5700	1900	2800	3000	15	18
TBM 08800	8800	2400	2750	8800	18.5	17
TBM 11700	11700	2500	3200	11700	30	16
TBM 21600	21600	3000	4000	21600	55	13
TBM 25300	25300	3000	4600	25300	75	13
TBM 32000	32000	3100	5500	32000	110	11

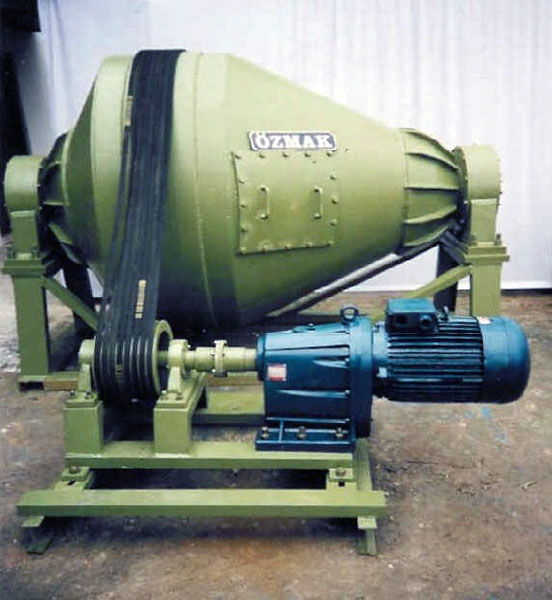

CONICAL PEBBLE MILLS

Conical mills are used for the fine grinding of hard materials. These mills consist of a cylindrical body with two conical extensions on the two ends. Depending on the hardness of material to be ground and the required purity of product, inside of the mill is lined with materials like rubber or stone.
The mill body is made of steel and rests on ball bearings. Loading and unloading is made through the collar of the large diameter bearing. Since these bearings are kept closed, they will not be affected by the environmental dust.
A set of belts and pulley is also placed instead of the external gear which is easily damaged by environmental dust. Thus, this mill shall give a problem free service for a long period of time.

TECHNICAL SPECIFICATIONS

Order Code	Capacity (kg/h)	Motor Power (kW)	Rotational Speed (d/d)	Outer Diameter (mm)	Length of Cylindirical Part (mm)	Weigth (kg)
TCM 0800	800	11	30	1400	400	4600
TCM 1200	1200	18,5	28	1600	600	6600
TCM 2000	2000	22	26	1800	600	7200
TCM 3000	3000	30	26	1800	1250	10000
