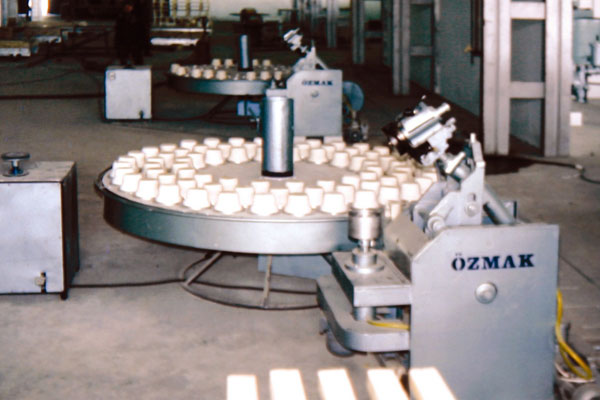

The carousel drier is designed to dry the articles like cups and bowls formed with convex dyes to leather hardness. It is a free rotating and direct blowing drier unit.

TECHNICAL SPECIFICATIONS

TYPE	OZFK 240	OZFK 270	OZFK 300
External diameter for revolving table (mm)	2400	2700	3000
Number of moulds (pcs)	79	130	150
Drying Air Temperature (°C)	50-60
Drying Air Flow (m³ / h)	1000	1250	2000
Drying time (min.)	5-10
Height (mm)	1150
Motor Ascent Distance (mm)	510
Weight (kg)	245	305	410
